Ferrule adapter for light guide
Standard type
| Model name | Part no. | ØA (mm) | B (mm) |
|---|---|---|---|
| Ø20✕L30 SU | 0000-0173 | Ø20 | 30 |
| Ø15✕L20 HY | 0000-0078 | Ø15 | 20 |
| Ø15✕L37 MO | 0000-0266 | Ø15 | 37 |
- Only C-mount lens is attachable to SLG-55C.
Custom-made type
- If you would like to order a custom-made type ferrule,
please let us know the dimensions of your light guide.

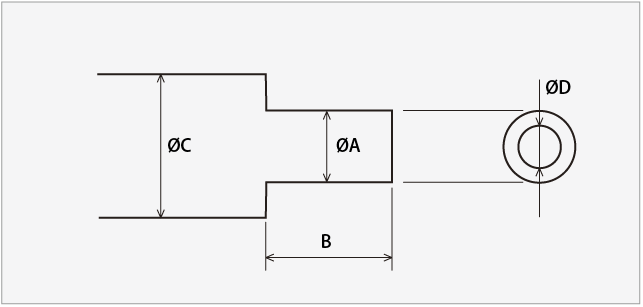

(ØA to D in the figure below)
Light guide image
